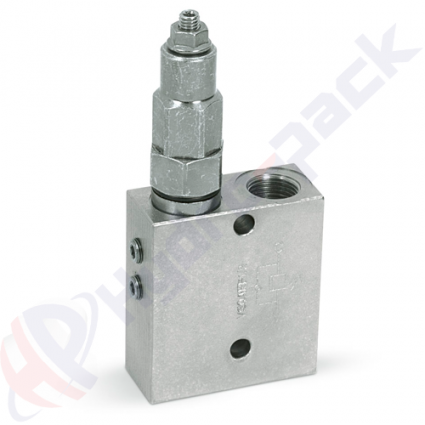

Direct acting pressure sequence valve, VSQAPP , 35 L/min, G 3/8" , 80-300 bar

Direct acting pressure sequence valve

Direct acting pressure sequence valve, VSQAPP , 35 L/min, G 3/8" , 80-300 bar

Direct acting pressure sequence valve

SKU: O VSQAPP 3/8 80-300 BAR

These valves are used to feed two cylinders in sequence: it provides flow to the secondary circuit when a primary circuit function has been completed. (reaching the pressure setting) Return flow is free.
Download the PDF catalog of the product
Price: €43.00
cart icon Add to cart Send inquiry
Fast order Fill in the form with your name and phone and we will call you for confirmation.

More information about the product

SEQUENCE VALVE WITH PRIMARY PRESSURE COMPENSATION

VSQAPP 3/8 80-300 bar | V0642/300

These valves are used to feed two cylinders in sequence: it provides flow to the secondary circuit when a primary circuit function has been completed. (reaching the pressure setting) Return flow is free.

It is ideal when second cylinder operates under low pressure. VSQAPP series are not affected by the back pressure and therefore it allows the circuit pressure to be used by both circuits.

PortsG 3/8"
Max. Pressure350
Max. Flow Rate35
SerieVSQAPP
Pressure Setting Range80-300
Standard Pressure Setting150
