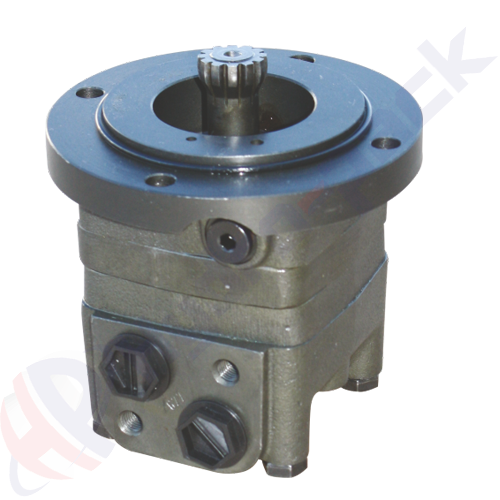

MTS Serien Hydraulikmotor, 315 cc/rev, Außenverzahnung ANS B92.1-76 , kurze Halterung , MTS315
MTS Serien Hydraulikmotor
MTS Serien Hydraulikmotor, 315 cc/rev, Außenverzahnung ANS B92.1-76 , kurze Halterung , MTS315
MTS Serien HydraulikmotorSKU: MTS315
Die Hydraulikmotoren der MT-Serie sind für den Dauerbetrieb unter rauen Betriebsbedingungen geeignet: z.B. hohe Drücke, dünnes Öl oder häufiges Umschalten. Durch die Kegelrollenlager eignen sich die Motoren zur Aufnahme statischer und dynamischer Radiallasten. Die MTS-Serie ist ein Kurzmontagemodell der Hydraulikmotoren der MT-Serie.
Preis:
€447.00
Schnelle Bestellung
Füllen Sie Ihren Namen und Telefonnummer in dem Formular für Feedback aus und wir rufen Sie zur Bestätigung an.
Mehr Information über das Produkt
MTS315 Hydraulikmotor
MTS315 | M+S Orbital-Hydraulikmotor |
Hydraulic motors are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power.
Hydraulic motors provide the force and supply the motion to move an external load. Hydropack provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. MT series motors are suitable for continuous operation under rough operating conditions: e.g. high pressures, thin oil, or frequent reversals. The tapered roller bearings make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency – even at high pressures, and good starting characteristics. MTS serie is short mount model of MT series hydraulic motors.
* Technical specifications are for continuous operation. Max. pressure value refers to inlet pressure.
MTS315 | M+S Orbital-Hydraulikmotor |
Hydraulic motors are rotary actuators that convert hydraulic, or fluid energy into mechanical power. They work in tandem with a hydraulic pump, which converts mechanical power into fluid, or hydraulic power.
Hydraulic motors provide the force and supply the motion to move an external load. Hydropack provide complete line of low speed, high torque hydraulic motors for agricultural, mobile and industrial applications. MT series motors are suitable for continuous operation under rough operating conditions: e.g. high pressures, thin oil, or frequent reversals. The tapered roller bearings make the motors suitable for absorbing static and dynamic radial loads. Besides the separately driven and hydraulically balanced disc valve, hydraulic and mechanical losses are reduced to a minimum. This gives the motors high efficiency – even at high pressures, and good starting characteristics. MTS serie is short mount model of MT series hydraulic motors.
* Technical specifications are for continuous operation. Max. pressure value refers to inlet pressure.
| Displacement | 315 |
| Flange Type | short mount |
| Shaft Type | external spline ANS B92.1-76 |
| Ports | G 3/4" |
| Max. Pressure | 210 |
| Max. Speed | 382 |
| Max. Torque | 95 |
| Max. Flow Rate | 125 |
| Serie | MTS315 |
